293A ABB ACS580 Drive AC Drive 160kW 215HP VFD Inverter For Industrial Pumps And Fans

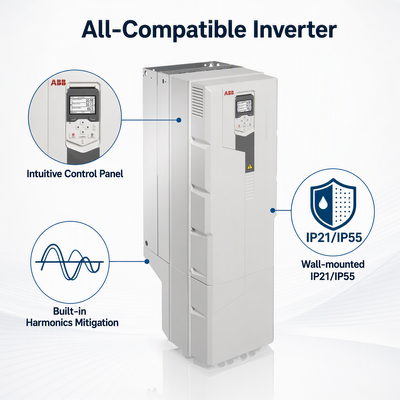

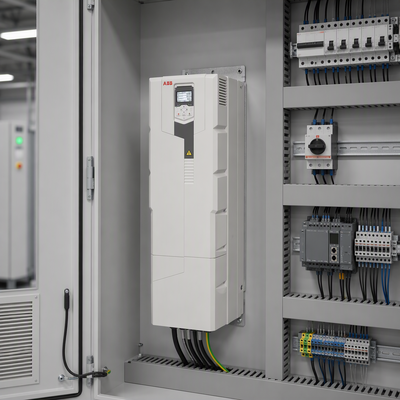

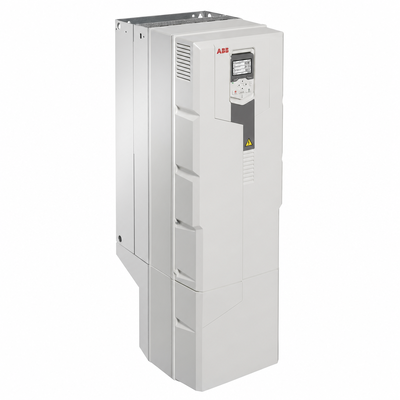

The ABB ACS580-01-293A-4 is a wall-mounted, all-compatible low voltage AC general purpose drive. It is designed to control a wide range of variable and constant torque applications with uncompromising simplicity. Plug-in ready and robust, it is the ideal choice for industries ranging from food & beverage to heavy material handling.

• Product ID: 3AUA0000080508
• Type Designation: ACS580-01-293A-4
• Power Rating: 160 kW (215 hp)
• Current Rating: 293 A

• All-Essential Built-in: Includes an integrated EMC filter, choke, Modbus RTU interface, and safe torque off (STO) as standard, reducing the need for external hardware.

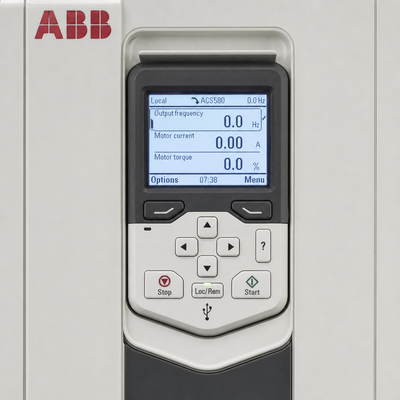

• Easy Setup: Features a versatile settings menu and control panel assistants for rapid commissioning and maintenance.

• Rugged Design: Coated circuit boards and a robust enclosure (IP21/Type 1 standard) ensure stable operation in harsh industrial environments.
• Wide Application Coverage: Perfect for compressors, conveyors, pumps, extruders, mixers, and fans.

• Eco-Design: Meets IE2 efficiency class requirements. Built-in energy saving calculators help monitor and optimize power consumption.
• Optimal Process Control: Advanced motor control for both asynchronous and permanent magnet motors.

The ACS580-01 is versatile enough to handle light and heavy industrial tasks:

• Food & Beverage: Centrifuges, mixers, and pumps.
• Textile & Plastic: Extruders and winding machines.
• Material Handling: Conveyors and cranes.
• Agriculture: Irrigation pumps and fans.
• Water & Wastewater: Pumping stations.

• Net Height: 965 mm (37.99 in)
• Net Width: 300 mm (11.81 in)
• Net Depth: 393 mm (15.47 in)
• Net Weight: 69 kg (152.12 lb)

• Global Support: Access to ABB’s worldwide service network.
• Compliance: Full CE, UL, cUL, RCM, and EAC certifications.
• Longevity: Engineered for long-term industrial life cycles with minimal maintenance.

• Unit Type: 1 Piece
• Packaging: Industrial standard reinforced case.
• Package Dimensions: 1145mm x 485mm x 654mm
• Made to Order: Yes

For bulk inquiries, customized configurations (IP55), or technical support, please click "Contact Supplier".
