15kW 30A DC VFD Drive Parker SSD 890 890CD-532300C0-000-1A000

Original Parker SSD 890CD Common Bus Drive 890CD-532300C0-000-1A000 | 15kW 30A High Performance VFD

Product Overview

The Parker AC890 series is a high-performance, modular system variable speed AC drive designed to control the speed and position of both open-loop and closed-loop multi-axis motor systems. The 890CD (Common Bus Drive) module is specifically engineered for multi-axis configurations, utilizing a common DC bus to facilitate regenerative power sharing and maximize energy efficiency.

This Frame Size C module delivers 15kW (20HP) of power and is fully compatible with Induction Motors (IM) and Permanent Magnet (PM) brushless servo motors. It features integrated Safe Torque Off (STO) compliant with SIL3/PLe standards, providing high-level safety without the need for external contactors.

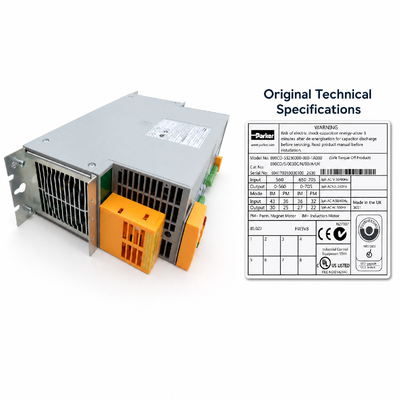

Technical Specifications (Based on Official Data & Original Label)

Advanced Modular Capabilities

• Common Bus Efficiency: Shares power across multiple axes. Braking energy from one motor can be used by another motoring axis on the same bus, reducing total power consumption and heat dissipation.

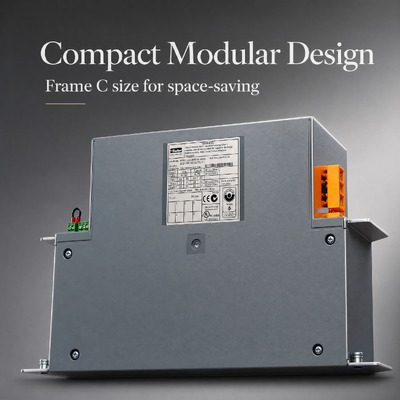

• Ultra-Compact Footprint: The Frame C modular design allows for high-density cabinet mounting, saving significant panel space in complex automation systems.

• 32-Bit Processing: Built on a high-speed 32-bit RISC processor for superior control dynamics and precise synchronization.

• DSE Lite Support: Fully compatible with Parker's DSE Lite configuration software, allowing for easy block-programming and diagnostics.

• Motion Control Readiness: Includes advanced function blocks for winders, tension control, and multi-axis coordination.

Industrial Applications

The Parker 890CD series is ideal for precision-driven industrial sectors:

• Printing & Packaging: Multi-station labeling, rotogravure, and high-speed web control.

• Converting Machinery: Slitters, rewinders, and film extrusion lines.

• Automated Assembly: Multi-axis robotic cells and pick-and-place systems.

• Test Equipment: High-speed dynamometers and component endurance test stands.

• Textile Processing: Multi-motor spinning and weaving synchronization.

Packaging & Logistics

• Condition: 100% Original Parker SSD stock, brand new/obsolete surplus available.

• Protection: Supplied with original orange safety port covers and technical mounting guides.

• Shipping: Global express delivery available via DHL, FedEx, UPS, and TNT.

• Global Compliance: CE marked, UL, and cUL listed for international use.

Why Choose Us?

• Specialist Expertise: Deep technical knowledge of the Parker SSD / Eurotherm range, including legacy and obsolete models.

• Inventory Availability: Immediate access to hard-to-find modular drives and option boards.

• Reliable Sourcing: Guaranteed authentic units with original factory serial numbers.

Contact us today for the best B2B price and lead time on the Parker 890CD-532300C0-000-1A000!
