Parker AC integrator 690+ Series

Three-Phase AC Drive / Variable Frequency Drive (VFD)

Model 690-431250B0-B00P00-A400 | 0.75 kW | Frame B

Parker SSD 690 Series AC Drive Replacement Part VFD 690-431250B0-B00P00-A400 0.75kW Three Phase 380-460V Keypad

Overview

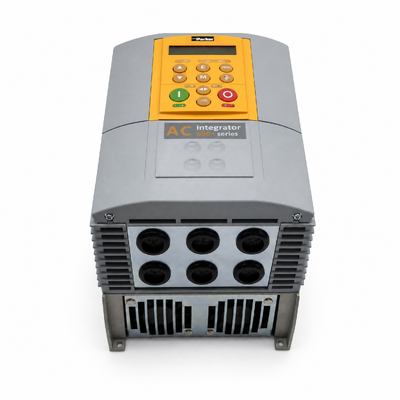

The Parker AC integrator 690+ series is a proven three-phase AC variable frequency drive designed for reliable motor speed and torque control in industrial applications. This unit, model 690-431250B0-B00P00-A400, is a genuine Parker frame B drive rated for 0.75 kW motor output and accepts a three-phase 380-460 V AC supply at 50/60 Hz.

It is supplied complete with its operator keypad, in original Parker packaging, ready for panel mounting in new machines or as a direct replacement part for existing Parker 690 installations.

Please contact us with your application details and destination port for stock status, pricing and shipping terms.

Applications

• Constant torque loads: conveyors, mixers, extruders, hoists (CT mode)

• Variable torque loads: fans, pumps, blowers, centrifugal loads (QT mode)

• Machine tools, packaging lines and general industrial machinery

• Drop-in replacement / spare part for Parker SSD 690 and 690+ systems

Key Features

• Built-in operator keypad: Start / Stop, JOG, PROG menu and Local / Remote (L/R) selection with status indication

• Selectable constant torque (CT) and quadratic torque (QT) modes to match the load

• Wide mains input: 380-460 V AC, three phase, 50/60 Hz

• Output frequency range up to 1 kHz (per unit nameplate)

• Compact frame B design: 177 (W) x 233 (H) x 181 (D) mm, approx. 4.3 kg

• CE marked and cULus listed (nameplate)

• Genuine Parker part number for service continuity of installed 690 systems

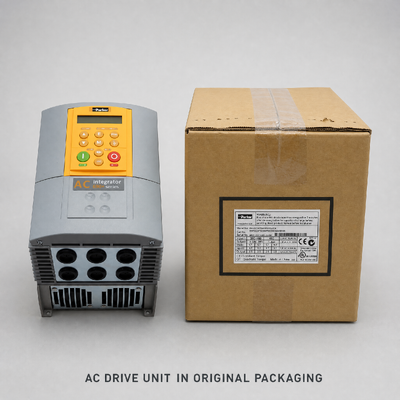

• Original Parker packaging for transport protection

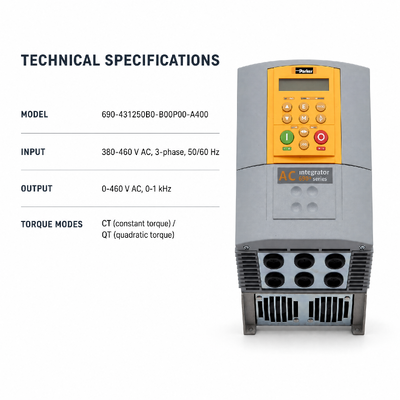

Technical Specifications

Mounting & Dimensions

• Frame B drive for panel mounting

• Overall dimensions: 177 (W) x 233 (H) x 181 (D) mm

• Weight: approx. 4.3 kg

• Sufficient clearance must be left above and below the unit for cooling airflow

• Refer to the Parker 690+ product manual before installation. Capacitor discharge time: allow 3 minutes after de-energisation before servicing, as stated on the unit label

Ordering Notes

• Genuine Parker part 690-431250B0-B00P00-A400, supplied with keypad in original packaging

• Please confirm your required quantity, target country / port and application before order

• Contact us for stock status, lead time, payment and shipping terms
