512C-32-00-00-00 32A Single Phase 2 Quadrant Analog DC Drive 110V 220V 380V 415V

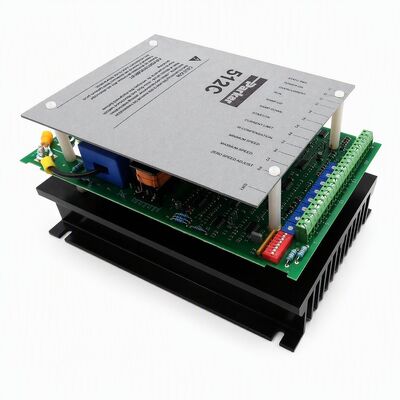

Parker 512C-32-00-00-00 DC Motor Speed Controller 32A Single Phase 2 Quadrant Analog DC Drive 110V 220V 380V 415V Chassis IP00

Product Overview

The DC512C series is a single phase analog 2-quadrant DC drive designed for speed or torque control of permanent magnet or wound field DC motors. This model, 512C-32-00-00-00, delivers a continuous output rating of 32A (up to 10HP), making it an ideal solution for single motor or multi-drive low power applications.

Extremely linear speed and current control loops combined with fully isolated control circuitry ensure stable, repeatable performance in industrial environments. The drive can be operated open loop with armature voltage feedback, or with DC tachogenerator feedback for enhanced speed regulation and wider speed range.

Key Features

• Fully isolated control circuits for safe, reliable operation
• Wide supply selection by jumpers: 110 V ... 415 V AC single phase
• CE marked and EMC compliant
• Multiple input speed and current setpoints
• Zero speed and drive healthy digital outputs for machine status monitoring
• Extremely linear control loops for accurate speed and torque control
• Suitable for permanent magnet or wound field DC motors
• Compact chassis mount design rated IP00
• Adjustable acceleration and deceleration ramps (1-40 s)

Technical Specifications

Analog Inputs / Outputs

• Analog Inputs: Speed reference, auxiliary speed reference, tachometer feedback option, current limit, minimum speed
• Analog Outputs: Speed, load, ramp output, total reference, reference voltage +/-10V
• Digital Inputs: Run (active), stall enable
• Digital Outputs: Zero speed, drive healthy

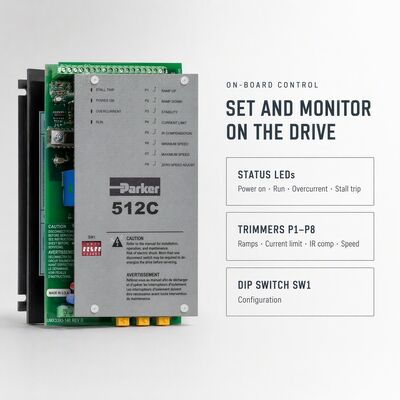

Adjustments (Potentiometers)

• Maximum speed
• Minimum speed
• Acceleration rate (1-40 s)
• Deceleration rate (1-40 s)
• Stability
• I.R. compensation

Standards & Certifications

• CE Marked to EN50178 (Safety, Low Voltage Directive)
• CE Marked to EN61800-3 (EMC Directive) with external filter
• NRTL Listed to US Standard UL508C
• NRTL Listed to Canadian Standard C22.2#14

Typical Applications

• Centrifugal fans and pumps
• Extruders and mixers
• Small paper converting machines
• General single motor or multi-drive low power speed/torque control applications

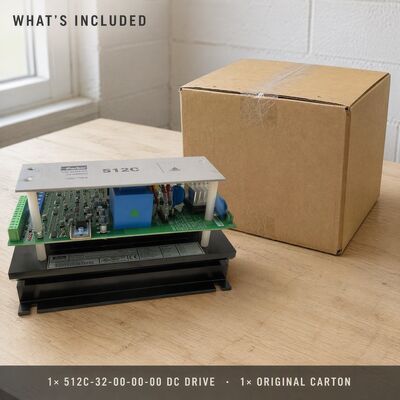

Packaging & Service Note

All units are professionally packed for safe international shipment. OEM and wholesale orders are welcome - please contact us for lead time, pricing, and volume discounts before placing an order.
