Yaskawa V1000 CIMR-VB2A0006BBA AC Drive 1.1kW 3 Phase 200-240V VFD Inverter for Motor Speed Control

Yaskawa V1000 Series AC Drive

Compact three-phase 200-240 V drive for 0.75 kW to 1.1 kW motors  |  Model CIMR-VB2A0006BBA

Key selling points

• Yaskawa V1000 series AC drive - model CIMR-VB2A0006BBA (REV: A), manufactured by Yaskawa Electric Corporation and assembled in China.

• Three-phase 200-240 V input, 50/60 Hz, with a maximum applicable motor rating of 1.1 kW / 0.75 kW as marked on the nameplate.

• Output rated 0-240 V and 0-400 Hz at 6.0 A / 5.0 A, so the motor speed can be set to the process instead of running at line speed.

• Compact IP20 housing with a rated mass of 1.1 kg - intended for installation inside a control cabinet or machine enclosure.

• Supplied in the manufacturer factory carton, gross weight 3 kg per carton, labelled for electronic equipment.

Product overview

The CIMR-VB2A0006BBA belongs to the Yaskawa V1000 series of compact AC drives (also called variable frequency drives, VFD, or inverters). The drive takes a three-phase 200-240 V supply and produces an adjustable three-phase output rated 0-240 V and 0-400 Hz, which lets the speed of a standard three-phase AC induction motor be set and changed to suit the machine cycle or the process demand.

The unit carries a built-in digital LED operator for local setting and monitoring, an aluminium heat-sink body for heat dissipation, and a moulded housing with ventilation slots. Because the enclosure is rated IP20, the drive is designed to be mounted inside a control cabinet or a machine enclosure rather than exposed outdoors.

Specifications

All values above are taken from the product nameplate and the factory carton of the supplied units. Please confirm your own application requirements against these ratings before ordering.

Product detail

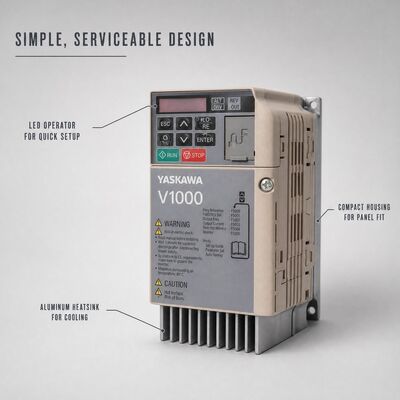

• Built-in digital LED operator with RUN, STOP, ESC, RESET, ENTER and arrow keys for local control and parameter setting.

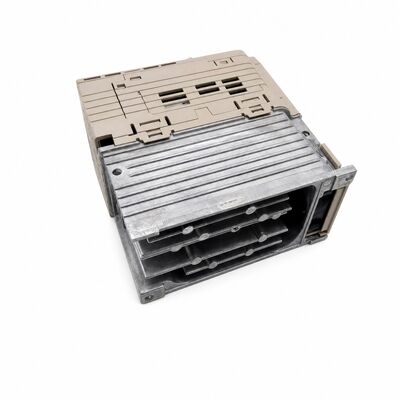

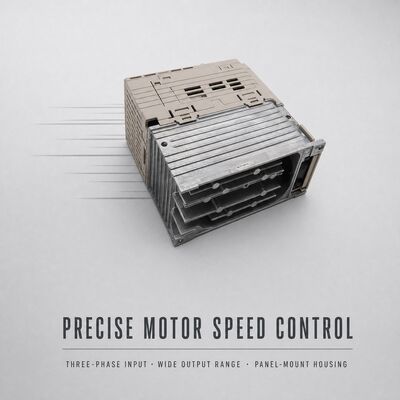

• Extruded aluminium heat-sink body - the finned section dissipates heat from the power stage.

• Moulded housing with ventilation slots and a screw-fixed front cover.

• Front face carries the product marking and the drive data; the nameplate sits on the housing and repeats the model, ratings, serial number and approval marks.

Applications

A compact 200 V class drive of this rating is commonly used to control standard three-phase induction motors in equipment such as conveyors, pumps and fans, machine tools, packaging lines, material handling systems and textile machinery. Please confirm the duty, load type and motor data against the drive ratings for your specific machine.

Packaging

• Each drive is packed in the manufacturer factory carton.

• Carton gross weight: 3 kg per carton, as printed on the carton label.

• Cartons are marked for electronic equipment handling.

• Order quantity, packing configuration for larger orders and shipping terms are confirmed per order - send your quantity and destination port and we will reply with the details.

Markings and compliance

• The product nameplate carries CE and UL approval markings, with UL file number E131457 printed on the plate.

• Enclosure rating IP20 is printed on the nameplate.

• Nameplate data includes the order number (O/N) and program number (PRG) for each unit.

• Please check that the product meets the electrical and machinery requirements of your own market before resale or integration.

FAQ

Q: What is the input voltage of this drive?

A: Three-phase 200-240 V, 50/60 Hz, rated 7.3 A / 5.8 A as marked on the nameplate.

Q: Which motor size does it suit?

A: The nameplate gives a maximum applicable motor rating of 1.1 kW / 0.75 kW.

Q: What output does it provide?

A: Three-phase 0-240 V, 0-400 Hz, 6.0 A / 5.0 A, as marked on the nameplate.

Q: Can it be installed outdoors?

A: The enclosure is rated IP20, so it should be installed inside a control cabinet or machine enclosure, protected from dust and water.

Q: How is it packed?

A: In the manufacturer factory carton, 3 kg gross weight per carton.
